24 ~ 72V DC nau'in 1t madaidaiciya ma'auni mai nauyi mai ɗaukar nauyin lantarki
Bayanin Samfura

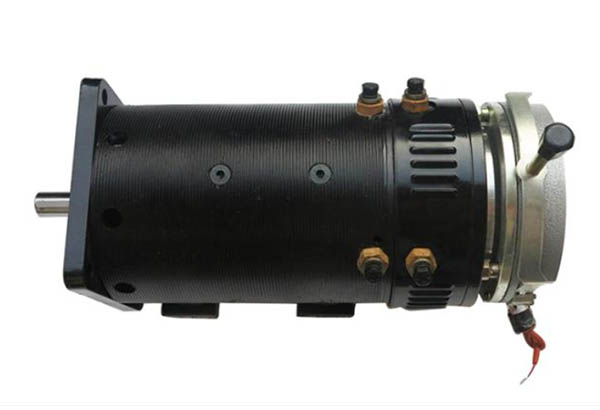

Tsarin injin forklift na lantarki ya fi sauƙi fiye da na cokali mai konewa na ciki.Hoton yana nuna 1DC nau'in 1t madaidaiciyar ma'aunin cokali mai yatsa mai nauyi injin forklift na lantarki.
Asalin ginin injin forklift na lantarki ya ƙunshi abubuwa masu zuwa:
1.Naúrar wuta: fakitin baturi.Daidaitaccen ƙarfin baturi shine 24, 30, 48, da 72V.
2.Frame: shine firam ɗin cokali mai yatsu, wanda aka yi masa walda da ƙarfe da ƙarfe.Kusan dukkan sassa na forklift an ɗora su akan firam ɗin.Ana ɗaukar nauyin nauyi daban-daban yayin aiki, don haka ya kamata ya sami isasshen ƙarfi da ƙarfi.
3. Watsawa: Ana isar da ikon motar zuwa motar tuƙi na forklift.
4. Tsarin tuƙi: sarrafa jagorar tuƙi na forklift.
5. Tsarin birki: sa tuƙin forklift ya ragu kuma ya tsaya.
6. Tsarin Motoci da Wutar Lantarki: Tsarin lantarki yana sarrafa motar ta hanyar sassa daban-daban don cimma farawa, tsayawa, jujjuyawa da daidaita saurin juzu'i, da kuma injin famfo mai ko matsa lamba na ruwa.
XINDA DC Motor Catalog
| XINDADC MOTOR CATALOG | ||
| Ƙarfin ƙima | Abu Na'a. | Hoton samfur |
|

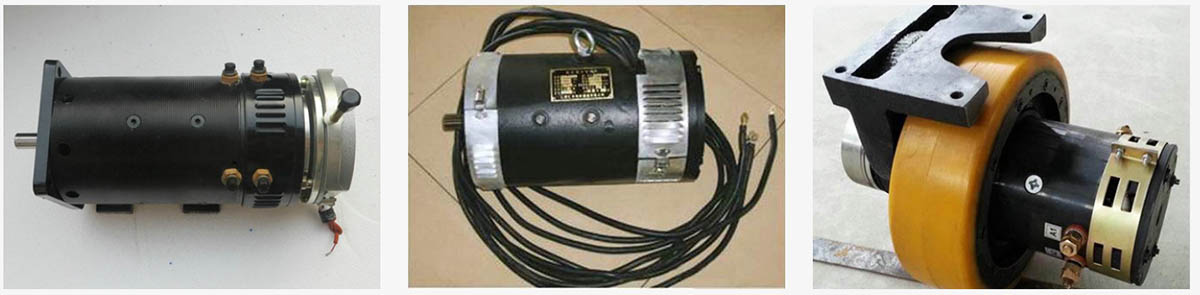

| Motar Motar Lantarki ta Forklift |  |
|
| DC Traction Electric Motar | |
| 7KW | Motocin Motar Lantarki na DC 242ZDC 242ZD706H15 |
|
| 5KW | Motocin Motar Lantarki na DC 192ZDC 192ZD525H9 |
|
| 4KW | Motocin Motar Lantarki na DC 170ZDC 170ZD402H2A3 |
|
|
| DC MOTOR don Motar Lantarki |
|
|
| Electric Forklift Electric Motor |
|
|

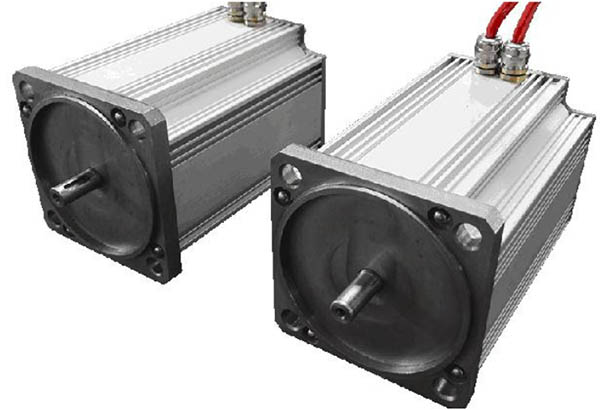

| Electric Forklift Electric Motor |  |
| Takaddun Takaddun Bayanan Mota na XINDA DC | ||||||||
| Ƙarfin Ƙarfi (KW) | 3 | 4 | 4.5 | 5 | 6 | 7 | 7.5 | 10 |
| Wutar Batir (VDC) | 48/60/72 | 72 | 96/144 | |||||
| Yawaitar da yawa | 2.5 | |||||||
| Ƙimar Yanzu (A) | 73/58.4/48.7 | 96.8/77.5/64.5 | 109/87.2/72.7 | 118/94.7/78.9 | 138.9/111/92.5 | 108 | 116 | 116/77 |
| Rated Torque (NM) | 10.2 | 13.6 | 15.3 | 17 | 20.5 | 23.9 | 25.6 | 34 |
| Gudun Mahimmanci (RPM) | 2800 | |||||||
| Mafi Girma Gudun (RPM) | 4500 | |||||||
| Tsarin Aiki | S2:60 min | |||||||
| Matsayin Insulation | H | |||||||
| Hanyar sanyaya | sanyaya dabi'a / sanyaya iska | |||||||
| Inganci (100% LOAD) | 85 | 86 | 86 | 88 | 88 | 88 | 90 | 90 |
| Matsayin Kariya | IP23 (IP44) | |||||||
| Aikace-aikace | Motar fasinja mai ƙananan sauri / abin hawa / abin hawa na golf / abin hawa na gani / motar 'yan sanda / babban abin hawa / abin hawa, da dai sauransu. | |||||||
