kitchen chef dafa abinci robot inji canza rashin so motor Featured Image

kitchen chef dafa abinci robobin girki inji canza rashin so motor

Takaitaccen Bayani:

800W babban saurin sauya motar rashin son zuciya da direba 35000rpm mai haɗawa da kayan aikin gida.

1. Babban ingantaccen tsarin aiki: A cikin kewayon ƙayyadaddun ƙayyadaddun saurin saurin sa, ƙimar gabaɗaya ita ce aƙalla 10% mafi girma fiye da sauran tsarin tsarin saurin gudu, kuma babban inganci ya fi bayyana a cikin ƙananan gudu da ƙarancin ƙima.

2. Faɗin tsarin tsarin saurin gudu, aiki na dogon lokaci a ƙananan gudu: Zai iya gudana a ƙarƙashin kaya na dogon lokaci a cikin kewayon daga sifili zuwa matsakaicin gudu, kuma yawan zafin jiki na motar da mai sarrafawa ya kasance ƙasa da na ƙididdiga. kaya.

3. Babban ƙarfin farawa, ƙananan farawa na yanzu: lokacin da ƙarfin farawa ya kai 150% na ƙarfin da aka ƙididdigewa, farawa na yanzu shine kawai 30% na halin yanzu.

Aika mana imel

Cikakken Bayani

Tags samfurin

Abubuwan Motoci

Aiki Voltage	DC300V
Ƙididdigar halin yanzu	2.8± 10% A
Matsakaicin halin yanzu	5.4A
Farawa ƙarfin lantarki	DC23-25V
rated iko	700± 10% W
Matsakaicin saurin gudu	35000± 10% RPM
Rashin ƙarfi	<100W
adadin sanduna	2
karfin juyi	0.2NM
tasiri	80% ± 10%
motsi	Farashin CW
hayaniya	96dB Max, <30cm
nauyi	1.68Kg
ɗauka	2 ball bearings
sarrafawa	Hall firikwensin
Shigar	flange dutsen

Tsarin Motoci

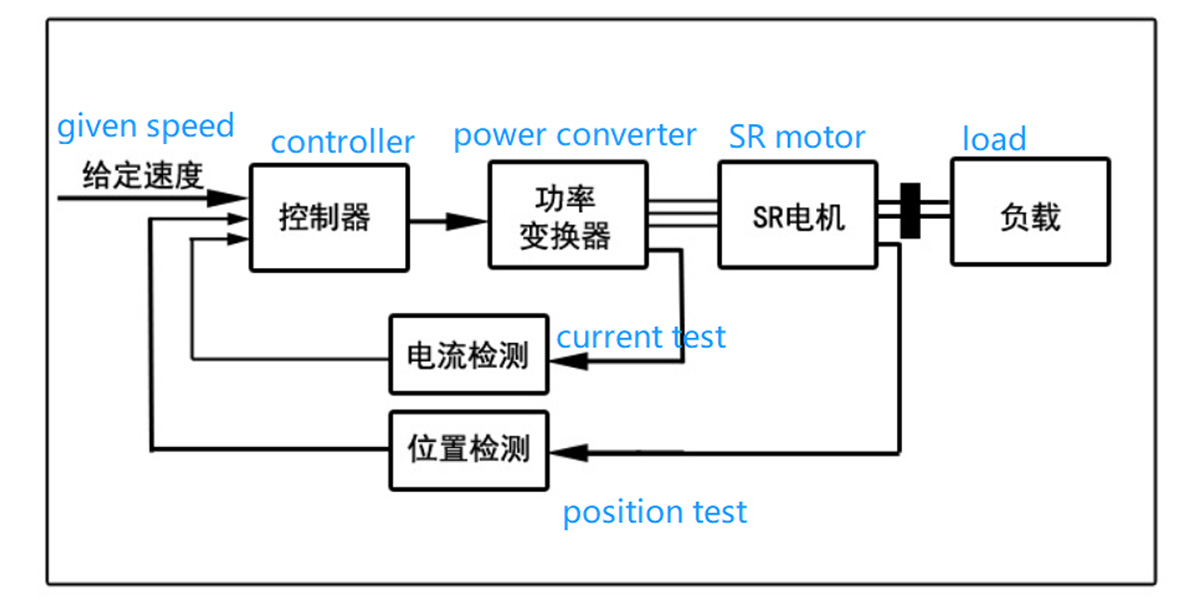

1. A abun da ke ciki na sauya rashin son tsarin tuƙi
Siffar tuƙi ta ƙin yarda (SRD) ta ƙunshi mafi yawan injin da ba a so, mai sauya wuta, mai sarrafawa da ganowa.

2.Motar rashin son canjawa
SR Motors za a iya tsara su a cikin lokaci-ɗaya, biyu-lokaci, uku-lokaci, hudu-lokaci da kuma Multi-lokaci tsarin tare da daban-daban lokaci lambobi, kuma akwai guda-hakori tsarin da sandarka da Multi-hakora tsarin da sandar, axial iska. rata, radial iska rata da axial iska rata.Tsarin ratar iska na radial, na'ura mai juyi na ciki da tsarin rotor na waje, Motocin SR da ke ƙasa da matakai uku gabaɗaya ba su da ikon farawa da kai.Yawancin nau'i-nau'i suna da fa'ida don rage haɓakar juzu'i, amma yana haifar da tsari mai rikitarwa, yawancin manyan na'urori masu sauyawa da ƙarin farashi.A halin yanzu, ana amfani da tsarin 6/4-pole-biyu da tsarin matakan 8/6-hudu.

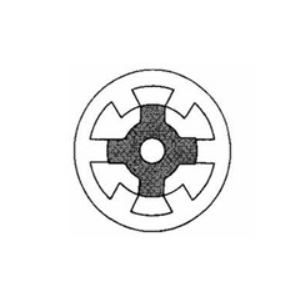

Tsarin yau da kullun 3-phase
6/4 polar SR motor

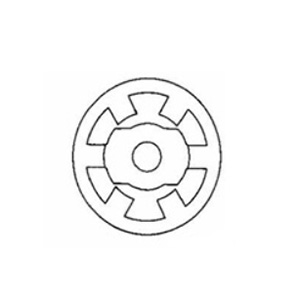

3-phase 6/2
polar SR motor

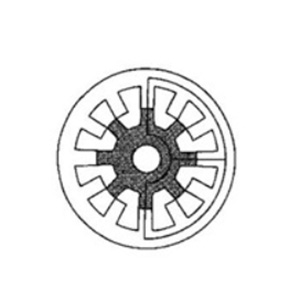

3-fashi 6/8
polar SR motor

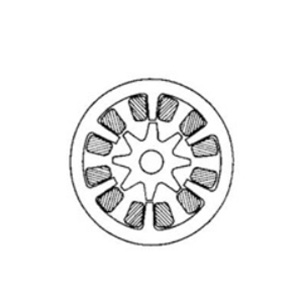

3-lokaci 12/8
polar SR motor

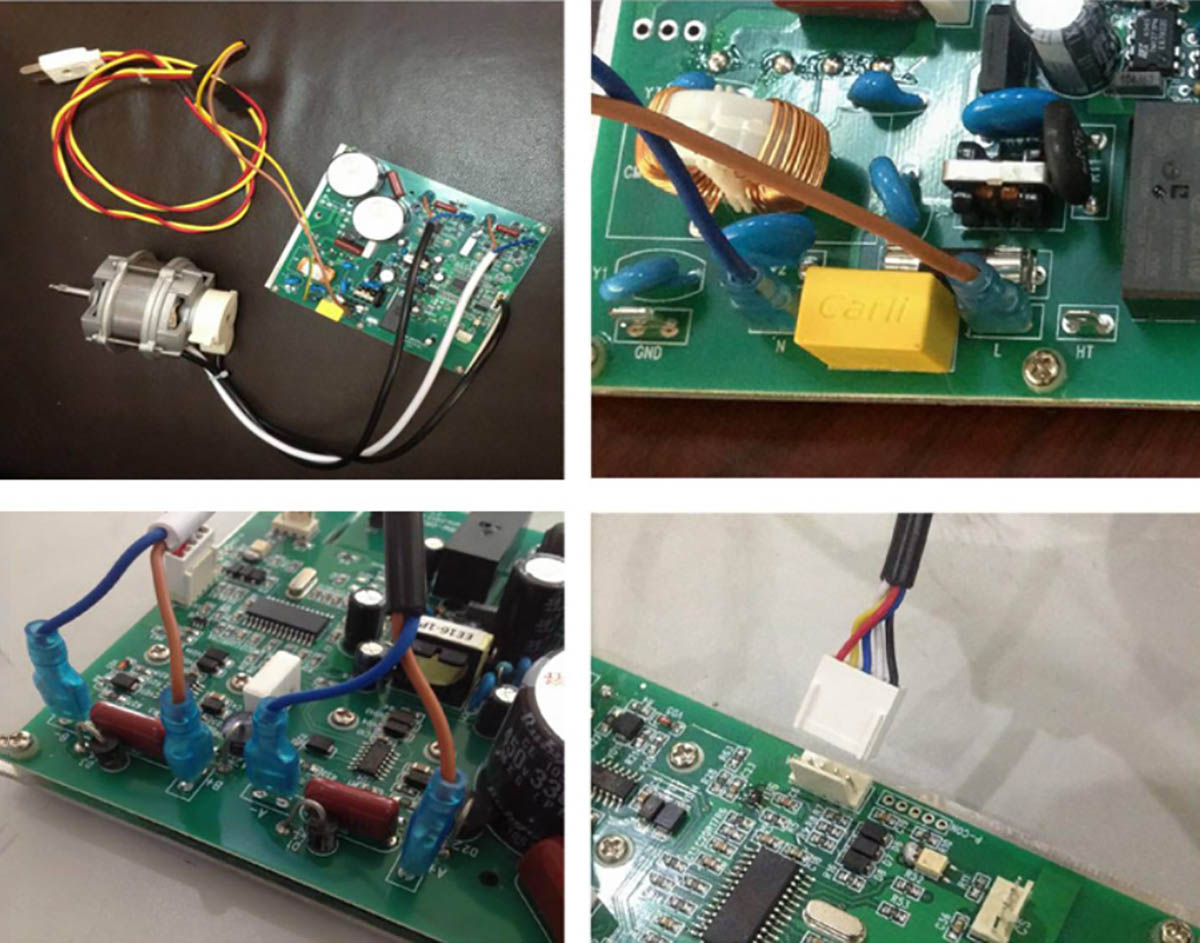

3. Jadawalin wayoyi na zahiri na mota da direba

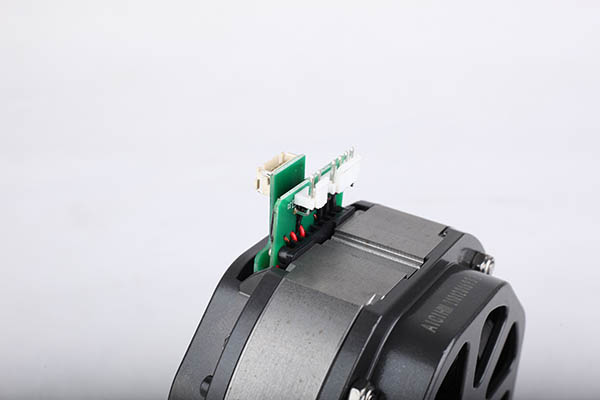

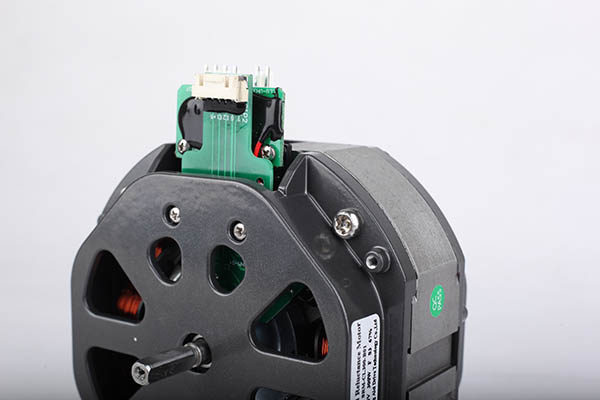

Hoton samfur

Wayayen zamani

Black (Brown / A+ Blue / A-), Fari (Brown / A+ Blue / A-), tsawon waya L=380 ± 50mm
Zaure waya waya:
Red (+5V), baki (GND), rawaya (SA), blue (SB), fari (SC), tsawon layin L= tsawon layin L=380 ± 50mm
Adana: 5 ℃ ~ 40 ℃, zafi <90%
Insulation Class: F
Coil-free-crack yana juya tsawon mintuna 3 a 130% na ƙimar ƙarfin lantarki.
Rayuwar aiki: awanni 2000 a ƙarƙashin yanayin aiki na yau da kullun.
Matsayin axial ya kamata ya zama ƙasa da 0.02mm lokacin da motar ke gudana.

Halayen motoci

1.Babban ingantaccen tsarin aiki: A cikin kewayon ƙayyadaddun ƙa'idodin saurin sa, ƙimar gabaɗaya ita ce aƙalla 10% mafi girma fiye da sauran tsarin tsarin saurin gudu, kuma babban inganci ya fi bayyane a ƙananan saurin gudu da ƙarancin ƙima.
2.Faɗin tsarin tsarin saurin gudu, aiki na dogon lokaci a cikin ƙananan gudu: Zai iya gudana a ƙarƙashin kaya na dogon lokaci a cikin kewayon daga sifili zuwa matsakaicin gudu, kuma yawan zafin jiki na motar da mai sarrafawa yana da ƙasa fiye da na nauyin nauyi.
3.Ƙarfin farawa mai girma, ƙananan farawa na yanzu: lokacin da ƙarfin farawa ya kai 150% na ƙimar da aka ƙididdigewa, farawa na yanzu shine kawai 30% na halin yanzu.
4. Yana iya farawa da tsayawa akai-akai, kuma yana canzawa tsakanin gaba da juyawa: yana iya farawa da tsayawa akai-akai, kuma yana canzawa tsakanin gaba da juyawa akai-akai.Lokacin da aka sami naúrar birki kuma ƙarfin birki ya cika lokacin da ake buƙata, farawa-tsayawa da juyawa gaba zai iya kaiwa fiye da sau 1,000 a cikin awa ɗaya.
5. Ƙarfin ɗaukar nauyi mai ƙarfi: lokacin da nauyin ya fi girma fiye da nauyin da aka ƙididdigewa na ɗan gajeren lokaci, saurin gudu zai ragu, za a kiyaye iyakar ƙarfin fitarwa, kuma ba za a sami wani abu mai girma ba.Lokacin da lodi ya dawo al'ada, gudun yana komawa zuwa saurin da aka saita.
6.Ƙarfin injina da amincin sun fi sauran nau'ikan injina girma.Na'ura mai jujjuyawar ba ta da ma'aunin maganadisu na dindindin kuma yana iya samun haɓakar zafin jiki mafi girma.
